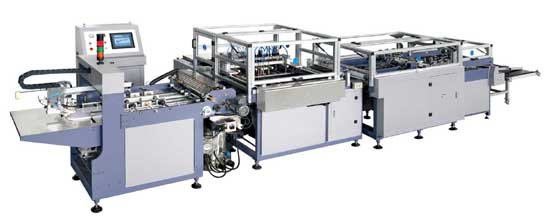

   AFM series Automatic case maker





Applications:
It adopts automatic feeding system for paper, automatic positioning device for cardboard, there are features of accurate, quick positioning, and beautiful finished products. It is used to make perfect book covers, cover of notebook, calendars, hanging calendars, files etc.

Function:
1.  The feeder adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.
2.  The width between stacker and feeding table is adjusted concentrically in the centre. The operation is very easy without tolerance.
3.  New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper scraper is more durable.
4.  Adopt imported ultrasonic paper tester double, featuring in simple operation, to keep two pieces paper from entering into the machine at the same time.
5.  the cardboard feeder is controlled by linear guide line and servo motor, its location is correct and quick.
6.  In the cardboard feeder, the machine can automatically stop when lack of cardboard to reduce the waste.
7.  With a power-full sucker motor to keep the paper without any movement.
8.  Paper feeding and positioning system adopt imported high-precise photoelectric control device to make the paper and cardboard location more accurate.
9.  The folding unit adopts special automatic angle-repair, edge-repair to ensure the qualification of finished products.
10.  It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HIM, which helps the operator easily remove them.

Main Specification:
Model
AFM540 / 540A
AFM450 / 450A
AFM450AL / 450L
AFM540AL / 540L
Paper size (A×B)
Min:130×230 mm
Max:570×830 mm
Min:130×230 mm
Max:480×830 mm
Min:130×230 mm
Max;480×1030 mm
Min:130×230 mm
Max:570×1030 mm
Paper thickness
Thickness (T)
100 - 200 gsm
1 - 3 mm
Finished product size (W×L)
Max:540×800 mm
Min:200×200 mm
Max:450×800 mm
Min:100×200 mm
Max:450×1000 mm
Min:100×200 mm
Max:540×1000 mm
Min:200×200 mm
Spine (S)
10 mm
Folded paper size (R)
10 – 18 mm
Max quantity of cardboard
6 pieces
Precision
Production speed
Motor power
Heater power
±0.50 mm
≦25 sheets/min
5kw/380v 3phase
6 kw
±0.50 mm
≦25 sheets/min
5kw/380v 3phase
6 kw
±0.50 mm
≦22 sheets/min
5kw/380v 3phase
6 kw
±0.50 mm
≦22 sheets/min
5kw/380v 3phase
6 kw
Machine weight
Machine dimension
3300kg / 3500kg
L8200×W2300mm
3000kg / 3200kg
L8200×W2200mm
3600kg / 3300kg
L9000×W2200mm
3900kg / 3500kg
L9000×W2300mm
Remark
1.  The max. and min. sizes of the covers are subjected to those of the paper and the quality of the paper
2.  The production capacity is 25 cover per minute. But the speed of the machine depends on the sizes of the covers
3.  A: With cover
